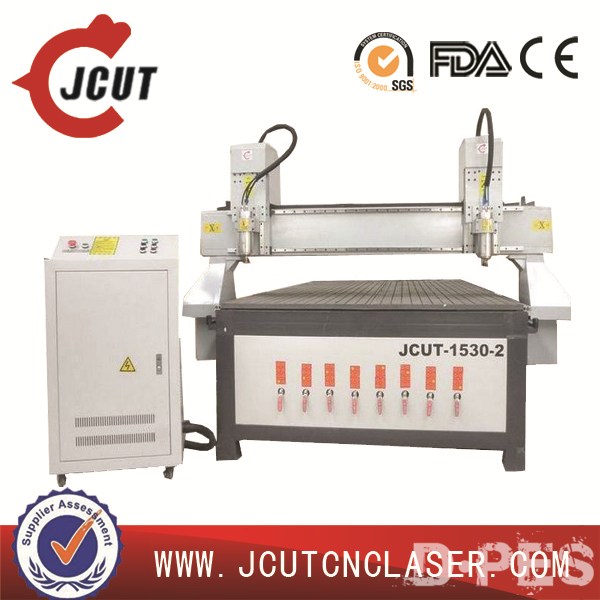

1530 cnc router/price router cnc 3d/3d cnc router price for furniture with CE JCUT-1530B-2 (59X98X5.9 inch) JCUT-1530B-2
(59X98X5.9 inch)
Professional and
efficient woodworking engraving machine
Features: Two 3kw water
cooling spindle with vacuum table
Applications:
Woodworking industry: Furniture decoration, Musical
Instruments industry, wooden crafts industry, large area plank plane sculpture,
solid wood furniture, annatto furniture, real wood art mural, density board
paint-free door, Wood composite door, wardrobe, cabinets, beside cupboard,
screen engraving and so on.
Parameters:
Machine body: Weld square steel tube
structure
Guideway: linear guide rail
Working Area
(X*Y*Z):1500/2X3000X150mm (59X98X5.9 inch)
Processing accuracy:
0.01mm
Repositioning accuracy: 0.03mm
Spindle: 2 X 3KW
water-cooled Spindle
rotating speed: 0-24000rpm/min
Max Moving Speed:
18000mm/min
Working speed: 0-10000mm/min
Driving mode:Ball screw ,XY-Rack
drive
Voltage: AC220V/50Hz
Max. Power consumption: 7.6KW
Feeding
Height: 200mm
Drive motor: Stepper
Command:G.code , mmg , plt ,
uoo,HPGL
Compatible Software: Type3, Artcut, ArtCAM, masterCAM
software
Certificate: CE, FDA
Pack dimensions: 2250mm X 3650mm X 1850mm
wooden trunk
Net weight: 1400KG
Option: Rotary axis, vacuum table, dust
collector, or bigger spindle.
Different working
size:
600X800mm/600X1500mm/900X1500mm/1200x1200mm/1200x1500mm/
1200x1800mm/1200x2400mm
or other sizes according to customers’
