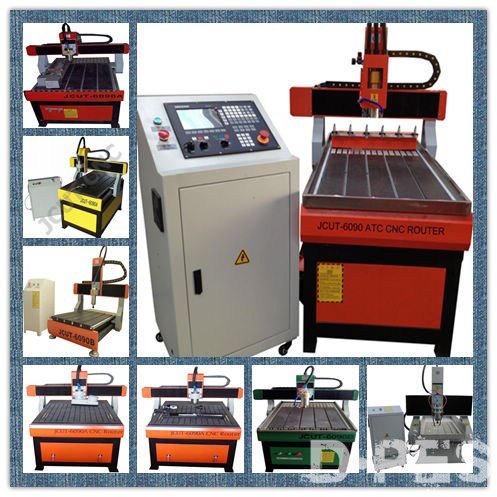

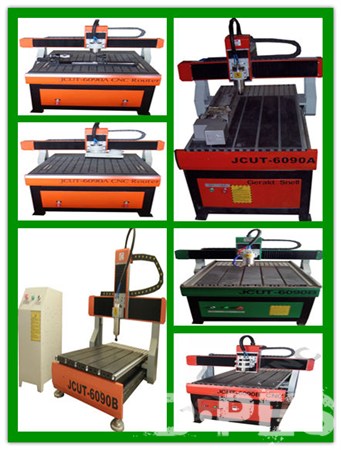

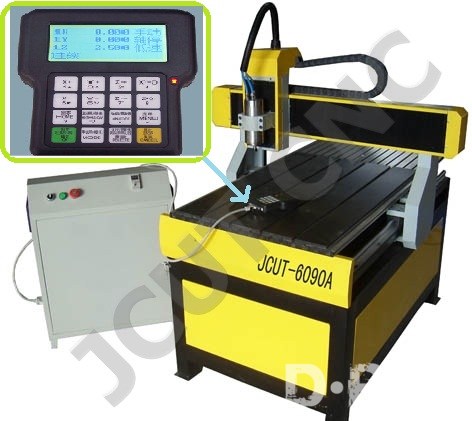

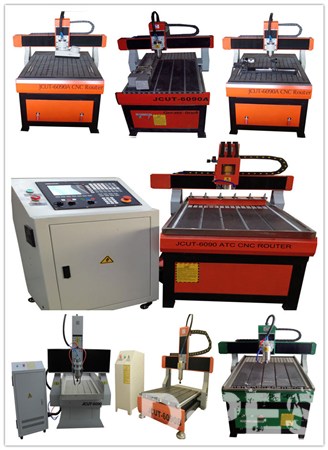

6090 cheap Advertisement engraving and cutting Wood CNC Router JCUT-6090A (23.6X35.4X5.9 inch)
Applications:
advertisement engraving, advertisement cutting, stone processing cutting, Cu and Al molding
cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing
cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration
cutting, wave board processing cutting, light equipment, mold processing cutting, sign and
mark manufacturing cutting, acryl board processing cutting, stamp cutting.
Parameters:
Machine body: whole cast iron
Guide way:cylindrical guide way
Working Area (X*Y*Z):600X900X150mm (23.6X35.4X5.9 inch)
Processing accuracy: 0.01mm
Repositioning accuracy: 0.05mm
Spindle: 1.5KW variable speed, water-cooled
Spindle rotating speed: 0-24000rpm/min
Max Moving Speed: 6000mm/min
Working speed: 0-5000mm/min
Driving mode: Ball screw
Voltage: AC220V/50Hz
Max. Power consumption: 1.9KW
Feeding Height: 80mm
Drive motor: Stepper
Command: G.code , mmg , plt , uoo,HPGL
Control software: Nctudio
Compatible Software: Type3, Art cut, Art CAM, master CAM software
Certificate: CE,FDA
Pack dimensions: 1400mm X 1250mm X 1600mm wooden trunk
Net weight: 220KG
Option: Rotary axis, vacuum table, dust collector
