3d wood router price cnc, cnc milling machine 4 axis, cnc router machine for 3d carving

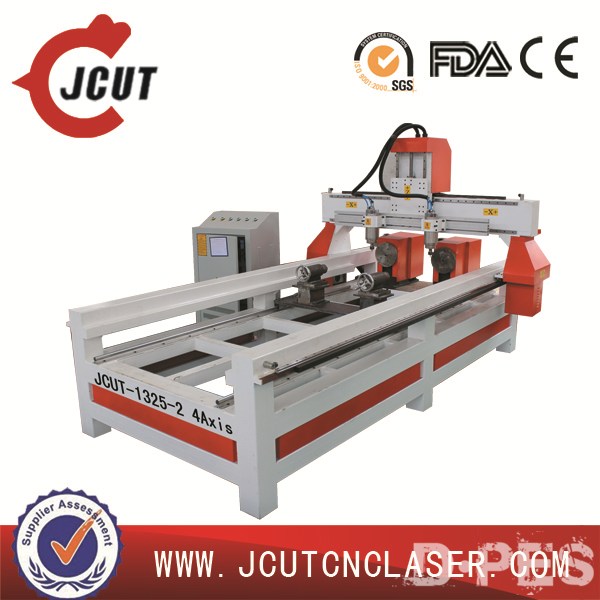

JCUT-1325-2R(51/4X98.4X7.8inch)
Applications:
This series cnc router is suitable for cylinder material engraving user,it is most widely used for furniture leg,chair,stair
and other round material carving. Both diameter and length can be customized according to clients' requsests.
Main Parameters:
Machine body
|
Whole seamless welded steel tube structure
|
Working size
|
1300/2x2500x200mm(51/4x98.4x7.8inch)
|
Rotary axis
|
200mm(diameter)x2500mm(length)x2
|
Spindle power
|
3kwx2 varied speed water cooling spindle
|
Guideway
|
Square orbit guideway
|
Drive mode
|
X,Y-rack and pinion Z- ballscrew
|
Drive motor
|
Stepper motor
|
Control system
|
4 axis DSP(or Mach3)
|
Command
|
G.code , mmg , plt , uoo,HPGL
|
Compatible Software
|
Type3, Artcut, ArtCAM, masterCAM software
|
Packing size
|
2100mm X 3300mm X 1600mm wooden trunk
|
Feeding Height: 400mm
Processing accuracy: 0.05mm
Repositioning accuracy: 0.02mm
Spindle rotating speed: 0-24000rpm/min
Max Moving Speed: 17000mm/min
Working speed: 0-1000mm/min
Voltage: AC220V/380V
Max. Power consumption: 9.6KW
Gross weight: 1500KG
Video links:
http://v.youku.com/v_show/id_XNTEwMDEyODEy.html
http://v.youku.com/v_show/id_XNjU3OTkwMTg4.html
Optional parts: bigger spindle,different rotary diameter,sevro motor
