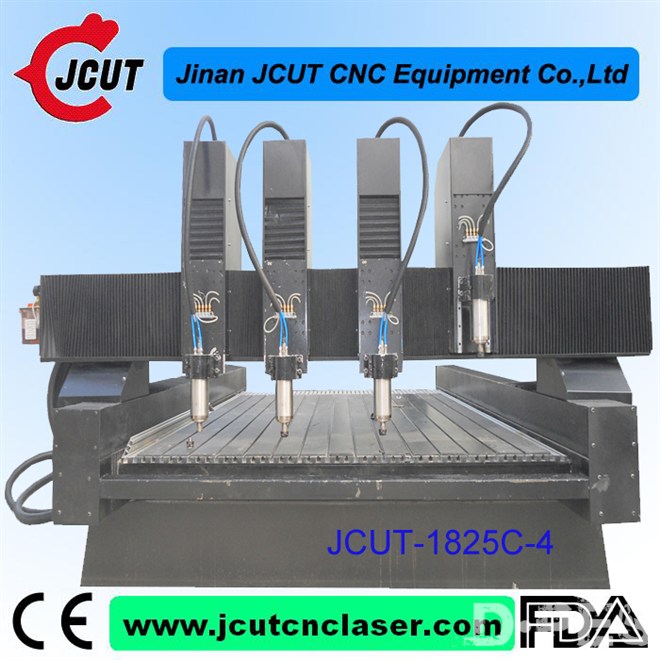

Product Name:Cnc marble engraving machine price for agent/cnc carving marble granite stone machine/stone cutting machine price low JCUT-1825C-4 (70.8X98.4X 11.8inch)

Product Details:
Model:
JCUT-1825C-4
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
0.00-0.00 /
Shipping Terms:
Shippment Port:
Qingdao
Payment Terms:
T/T,Western Union,MoneyGram
Show Buyers your Ability to Supply:
Production Capacity:
20 Set/Sets per Month
Delivery Time:
9-15 days after payment
Packaging:
wooden packing for export

Detailed Product Description:

Cnc marble engraving machine price for agent/cnc carving marble granite stone machine/stone cutting machine price low JCUT-1825C-4 (70.8X98.4X 11.8inch)

Applicable industry: stone, tombstone processing, advertising, decoration, wood furniture, handicraft

industries. It can be for murals, marble, granite, tombstone, milestones, tile and other stone carvings

for text and graphics engraving and relief. glass, wooden fish stone and other hard materials engraving

and cutting.


Performance Features:
1.Three axes adopt import linear orbit, two line sliding track, heavy loading, stable working, high precision, long lifetime .
2. Whole seamless weld steel structure, not easy to distort, the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.
3. Constant power spindle and motor, high cutting capability, high efficiency.
4. Well compatibility, compatible software CAD/CAM, such as Type 3, Artcam,Castmate,Artcam,Coredraw.
5. Double direction cutters cooling system can prolong the lifetime of using.
6. High flexibility, uneasy distorted cable and imported electronic components guarantee the stability of operating the machines.

Main Parameters:

Machine body

Whole seamless weld steel structure

Working dimension

1800/4X2500X300mm (70.8X98.4X 11.8inch)

Water sink

Yes

Spindle power

2.2kwx4 constant power spindle

Guideway

Linear rail guideway

Drive mode

X,Y-rack and pinion,Z-ball screw

Drive motor

Stepper motor(optional:servo motor)

Control software

Ncstudio (optional:Mach 3/DSP)

Command

G.code , mmg , plt , uoo,HPGL

Compatible Software

Type3, Artcut, ArtCAM, masterCAM software

Pack dimensions

2200mm X 3300mm X 1600mm wooden trunk

Table size: 1950x3000mm

Feeding Height: 300mm

Processing accuracy: 0.05mm

Repositioning accuracy: 0.02mm

Spindle rotating speed: 0-24000rpm/min

Max Moving Speed: 10000mm/min

Working speed: 0-6000mm/min

Voltage: AC380V/50Hz

Max. Power consumption: 6.2KW

Net weight: 1100KG

Option: Rotary axis, or bigger spindle.
Different working size:

600X800mm/600X1500mm/900X1500mm/1200x1200mm/1200x1500mm/
1200x1800mm/1200x2400mm/1500x3000mm or other sizes according to customers’
