woodworking easy operation system wood cnc router for door cabinet cutting and engraving

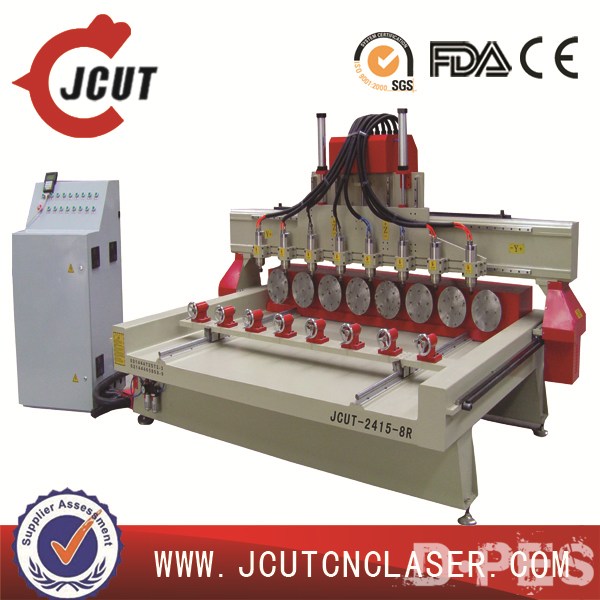

JCUT-2415-8R
Specifications:
This machine is widely used for buddha,table legs,etc
The
machine structure of strong, large cutting force, high speed,suitable for
processing large quantities of material, there are two spindle, it is suitable
for processing the same pattern and shape of the plate, twice the efficiency of
an ordinary machine.
1,Solid
gantry, well structure of lathe bed ,stable lathe table, fast speed and high
accuracy .
2, High-speed water cooling spindle and high performance subdivision driver
ensure to work stably for a long time.
Parameter:
|
Machine model
|
JCUT-2415-8R
|
|
Working dimension
|
2400*1500*300mm
|
|
Spindle
|
8x2.2KW water cooling spindle
|
|
Rotary axies
|
200mm,1500mm long
x 8
|
|
Spindle speed
|
24000rpm
|
|
Max travel speed
|
20m/min
|
|
Max moving speed
|
15m/min
|
|
Guidway
|
HIWIN Linear rail guideway
|
|
Driving mode
|
rack and pinion
|
|
Votalge
|
AC 380V
|
|
Driving motor
|
stepper motor
|
|
Controlling system
|
DSP Four shaft linkage
|
