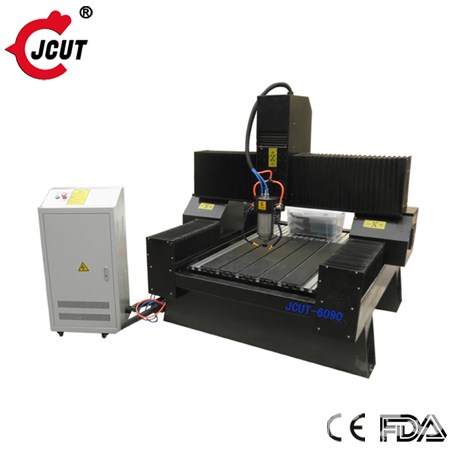

cnc metal engraver/6090 metal engraving machine/cnc router engraving machine JCUT-6090 (23.6X35.4X 5.9inch)
Applications:
advertisement engraving, advertisement cutting, stone processing cutting, Cu and Al molding cutting, mold manufacturing
cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building
mold cutting, indoor decoration cutting, wave board processing cutting, light equipment, mold processing cutting, sign and
mark manufacturing cutting, acryl board processing cutting, stamp cutting.
Specifications:(with water sink for cutters cooling)
Working Area (X*Y*Z):600X900X300mm
Guideway:linear rail
Processing accuracy: 0.03mm
Repositioning accuracy: 0.02mm
Spindle: 2.2 KW Variable speed,water-cooling spindle
Spindle rotating speed: 0-24000rpm/min
Max Moving Speed: 8000mm/min
Working speed: 0-6000mm/min
Driving mode: ballscrw
Voltage: AC 220/50/60Hz (or 110v/60HZ)
Max. Power consumption: 3KW
Feeding Height: 300mm or higher
Drive motor: stepper motor
Blade diameter:3.175mm, 4mm,6mm (or 8mm,10mm,12mm, 12.7mm)
Command:G.code , mmg , plt , uoo,HPGL
Control software: Ncstudio or mach3 or DSP
Compatible Software: Type3, Artcut, ArtCAM, masterCAM software
Certificate:CE, FDA
Pack dimensions: 1200mm X 1400mm X 1650mm wooden trunk
Net weight: 350KG
Option: Rotary axis, servo motor, bigger spindle.

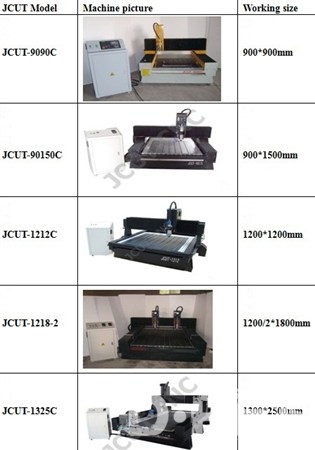

Different working size:
600X800mm/600X1500mm/900X1500mm/1200x1200mm/1200x1500mm/
1200x1800mm/1200x2400mm/1500x3000mm or other sizes according to customers’
