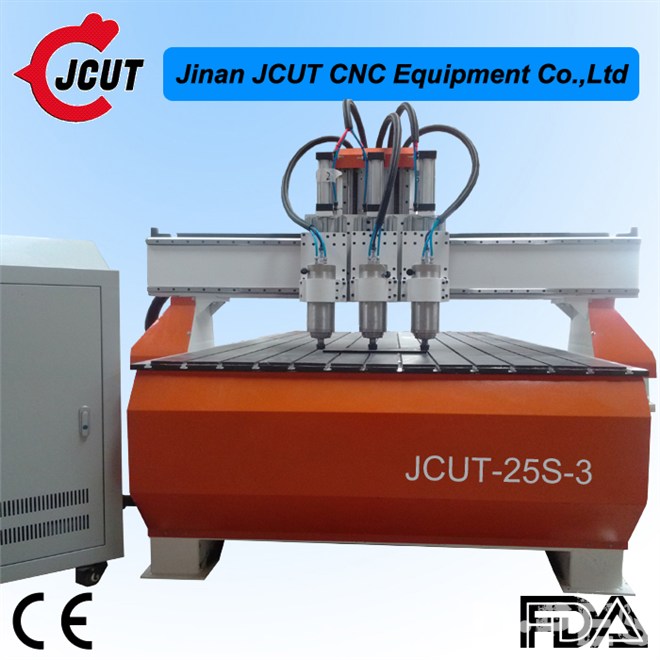

Simple quick three tool changes wood cnc router JCUT-25S-3
(51''x98''x7.8'')
Applications:
Can be used on
advertisement engraving, advertisement cutting, stone processing cutting, Cu and
Al molding cutting, mold manufacturing cutting, wood processing cutting, wood
door manufacturing cutting, craft manufacturing cutting, light box cutting,
building mold cutting, indoor decoration cutting, wave board processing cutting,
light equipment mold processing cutting, sign and mark manufacturing
cutting,
Acryl board
processing cutting, stamp cutting
Features: Three 2.2kw
water cooling spindle air cylinder Automatic tool changing
1) Machine body: whole
weld steel tube
2) Guideway:XYZ-axis
use linear guideway
3) Driving
mode:Gear
4) Work dimensions:
1,300/3mm x 2500mm x 200mm
5) Z-axis working
area: 150mm
6) Max. Feeding
height: 150mm
7) Cut thickness of
material: ≤40mm
8) Max. Speed:
25,000mm/min
9) Working speed: 0 -
8,000mm/min
10) Mechanical
precision: 0.01mm
11) Software: type 3
software, Artcut software, Artcam software
12) Max. Power
consumption: 3kW
13) Power source: AC
220/50/60Hz (or 110v/60HZ)
14) Driver type:
stepper motor(XZ-85BYG, Y-axis use two 85BYG motors)
15) Memory: without
or (DSP)
16) Spindle: 3x 2.2kW
water-cooled spindle
17) Spindle speed: 0 -
24,000rpm/min
18) Blade
diameter:3.175mm, 4mm,6mm (or 8mm,10mm,12mm, 12.7mm)
19) Control system:
(NCSTUDIO) or DSP (USB interface)
20) Command: G code,
u00, mmg, plt
21) Running
circumstance temperature: 0 - 45°C
22) Relative humidity:
30% - 75%
Packing:
Pack dimensions:
2,000mm x 3200mm x 1,700mm
Net weight: 950kg
(with bracket)
Gross weight:
1000kg
