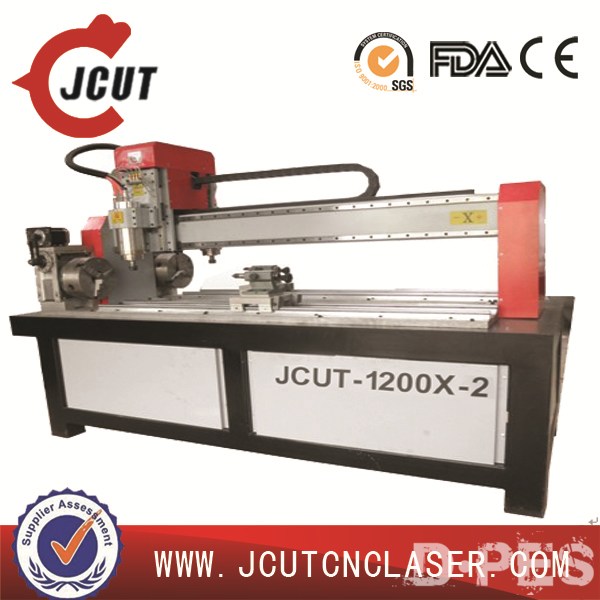

CNC router/cnc engraver/cnc engraving machine double heads JCUT-1200X-2
Features:
1. Seamless steel welding structure
2. Taiwan Hiwin linea guideway
3.
Double Rotary axis of 160 mm diameter, 1200mm length(200mm or bigger
diameter options,1500mm or longer X axis travel size options)
4.2.2KW water cooled spindle(options:3kw or bigger spindle motor)
5. NCstudio operation system(options:DSP/MACH3 for options)
6. Single head and rotary axis(Options:double/three or multi heads and rotary axes)
Applications:
Round object or cylinder material of follow:
Wood, acrylic, PVC,artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum
Specifications:
Model
|
JCUT-1200X-2
|
Max. material size
|
160mm diamter, 1200mm lengthx2
|
Machine body
|
Welded steel structure
|
X structure
|
Hiwin linear guideway,rack and pinion drive mode
|
Z structure
|
Hiwin linear guideway,ballscrew drive mode
|
Spindle
|
2x2.2 kw water cooled
|
Spindle speed
|
0-24000 RPM
|
Drive motor
|
Stepper system
|
Max. Rapid Travel Rate
|
17,000 mm/min
|
Max. Working speed
|
10,000 mm/min
|
Control system
|
Ncstudio control(optional:Mach3 or DSP)
|
Software
|
Type3, Artcut, ArtCAM, masterCAM software
|
Command
|
G.code , mmg , plt , uoo,HPGL
|
Machine precision
|
0.03 mm
|
Repositioning precision
|
0.01 mm
|
Working voltage
|
AC 220/380V
|
Machine Size
|
1700mmX600mmX1600mm
|
Net weight
|
800KG
|
