Product Name:24x36" cnc router machine on sale free ship

Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
1
Place of Origin:
Min. Order:
FOB Price:
0.00-0.00 /
Shipping Terms:
Shippment Port:
Qingdao
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
230 per Month
Delivery Time:
Packaging:
wood package

Detailed Product Description:

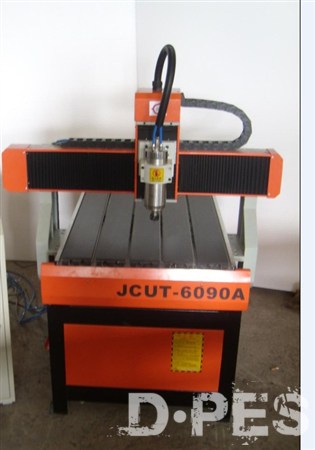

CNC Router JCUT-6090A (24X36")

(With CE certificate, FDA)



Features:

1.  Machine Body: Cast Iron Construction

2.  Guide System: X, Y, and Z Axis - Cylindrical Rails with Ball Bearing Guides

3.  Drive Mechanism: Precision Ground Ball Screw

4.  Working Dimensions: 600 x 900 x 150mm (or higher) (24” x 36” x 6”)

5. Body Dimensions: 800 x1200 x 1200mm (31.5” x 47.25” x 47.25”) (including bracket)

6.  Z Axis Working Height: 150mm (6") or bigger

7.  Max. Feeding Height: 150mm (6") or bigger

8.  Max. Speed: 10000 mm/min (393”/min)

9.  Working Speed: 0 - 8000 mm/min (0 - 315”/min)

10.  Mechanical Precision: 0.01 mm (0.0004”)

11.  Software: Type 3 software, Artcut Software, Artcam Software

12.  Max. Power consumption: 1.6kW

13.  Power source: AC 110/220/50-60Hz

14.  Drive Type: Stepper Motor (X and Z axis use 57BYG motor, Y axis uses 85BYG)

15.  Spindle: 1.5kw Variable Speed (VFD), Optional 2.2kw or higher

16. Spindle Speed: 0 - 24,000 rpm

17.  Blade Diameter: Ф3.175mm, 4mm, 6mm(1/8”, 5/32”, 15/64”)

18. Control System: Ncstudio or

                                MACH3 (support inch, pay additional $400) or

                             DSP ( supports digital control without a computer for an additional $500, 128MB memory included with optional DSP control system)

19.  Command: G code, u00, mmg, plt

20.  Ambient Operating Temperature: 0 - 45°C (32 - 113° F)

21.  Relative humidity: 30% - 75%



Packing:

Packing dimensions: 1170 x 1500 x 1480mm (46” x 59” x 58.25”)

Net weight:

220kg with bracket

Gross weight:

240kg



Applications:



Can be used for engraving and cutting advertising products, processing and cutting stone, cutting copper and aluminum moldings, manufacturing molds, processing and cutting wood,

cutting and embossing wood moldings, manufacturing wood doors, craft manufacturing, light box cutting, cutting indoor decorations, wave board processing, light equipment molding, processing, and cutting,

sign and mark manufacturing, acrylic board processing and cutting, stamp cutting.



Optional Items: (Please choose the options you want and I will amend the total price)

Rotary Axis (4th axis for use on cylindrical material)                           $350

Dust Collection System (includes dust hood, vacuum, and hoses)     $500

Vacuum System (includes vacuum pump, vacuum table, and hoses) $600

Upgrade the 1.5kw spindle to a 2.2kw (approximately 3hp)                $200

Water Channel (for cutting metal and other hard material)                  $180

Mach3 from USA                                                                                    $400

DSP Digital Controller                                                                          $500
