Garment

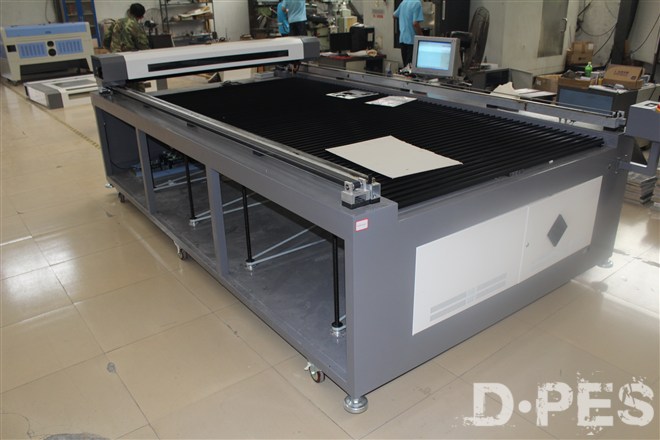

Cloth Laser Cutting Machine JCUT-1530
working size:1500*3000 mm (59.05*118.1 inch)
Features of Garment Cloth Laser Cutting
Machine:
Stable structure and high performance
High precision and high cutting speed
Low maintenance costs
Long lifetime
With CE, FDA certifications
It will help you greatly enhance the efficiency of related industries and the quality of relevant products.
Application of Large Plate Laser
Cutter:
Wood,bamboo,jade, marble,organicglass,crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Advertisement,arts&crafts,leather,toys,garments,model,building upholster, computerized embroidery and clipping, packaging and paper industry.
Technical specifications:
1) Engraving area: 1500*3000 mm
2) Whole machine size: 1800*3500*990 mm
3) Laser yube:60W, 80W, 100W or 130W
4) Cutting speed: 0-24000mm/min
5) Resetting positioning accuracy: ±0.1mm
6) Power supply: AC110-220V ±10%, 50 - 60Hz
7) Gross power: <1500W
8) Operating temperature: 0 - 45 °C
9) Operating humidity: 5 - 95%
10) Minimum shaping character: English 1x1mm
11) Graphic format supported: BMP, PLT, DST, DXF, and AI
12) Driving system: stepper
13) Cooling mode: water-cooling and protection system
14) Auxiliary equipments: Exhaust-fans, air-exhaust pipe
15) Controlling software: DSP control system.
16) Compatible software: CorelDraw AutoCAD Photoshop
17) Laser- type: Sealed CO2 laser tube
18) Net Weight: 600Kg
19) Gross weight: 700Kg
Parts for free:Software in CD, power line, data line, fan, air pump, water pump, water tank and alternate chip.
Optional equipment: Automatic feeding
device
Warranty:
One year for machine, and 3 month for laser tube.
We supply online
service 24 hours a day MSN, Skype, Yahoo, Gmail and so on.
You can also
contact us by email, and we will reply in 24 hours, or by phone if
urgently.
Freight:
We can send this machine to your port or door address by sea. Do as you
need.
If sending to your port, please tell us your port.
If sending to
your door address, please tell us your address, and better with post code.
Key
point:
Please kindly tell us your engraving or cutting
materials, and materials’size.
Then we can quickly check and recommend to you
the right machine with right working area.
Samples:
