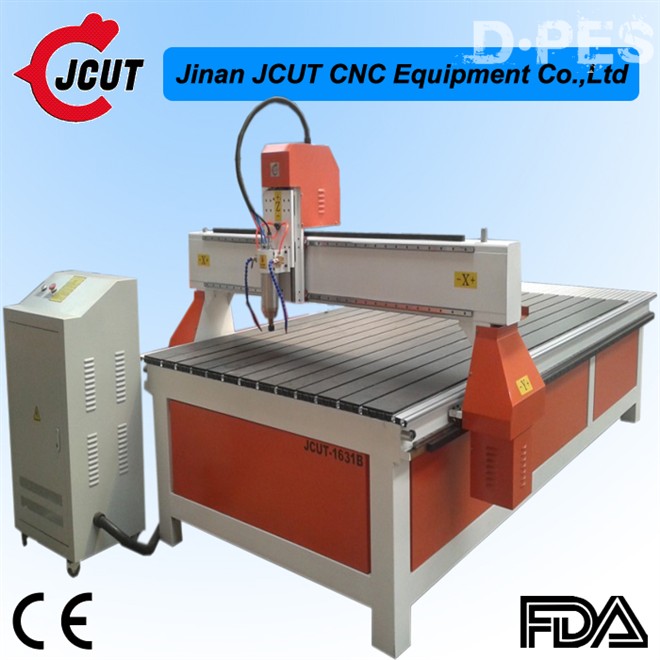

Wood cutting engraving machine wood cnc router wood cnc engraver woodworking router machine JCUT-1631(62.9X122X5.9inch)
Features:with vacuum table and dust collector
Professional and efficient woodworking engraving machine
Specifications:
This machine is widely used in woodworking, carving, cutting, engraving, work materials are wood, MDF, aluminum panels, ABS,acrylic, PVC, a variety of decorative materials.
1,Solid gantry, well structure of lathe bed ,stable lathe table, fast speed and high accuracy .
2, High-speed water cooling spindle and high performance subdivision driver ensure to work stably for a long time.
3, Adopt advanced CNC system (NCstudio or DSP control system), This system have break point memory mode and special saving made of different points so that can make sure continuous working after electronic drop or other postpone situation. This function can guarantee the processing precision of long time operation.configured with practical and easily-learned software , can conveniently check the moving path of tool, and adjust the processing depth of Z axis and the speed of motor.
Parameters:
Machine body: Weld square steel tube structure
Guideway: linear guide rail
Working Area (X*Y*Z):1600X3100X150mm(62.9X122X5.9inch)
Processing accuracy:0.01mm
Repositioning accuracy:0.03mm
Spindle:3KW variable speed , water-cooled
Spindle rotating speed:0-24000rpm/min
Max Moving Speed:18000mm/min
Working speed:0-10000mm/min
Driving mode:Z-Ball screw ,XY-Rack drive
Voltage:AC220V/50Hz And AC380v
Max. Power consumption:5.5KW
Feeding Height:200mm
Drive motor:Stepper
Command:G.code , mmg , plt , uoo,HPGL
Compatible Software:Type3, Artcut, ArtCAM, masterCAM software
Certificate:CE,FDA
Pack dimensions:2250mm X 3750mm X 1850mm wooden trunk
Net weight:1500KG
Option: Rotary axis, vacuum table.dust collector,or bigger spindle .
