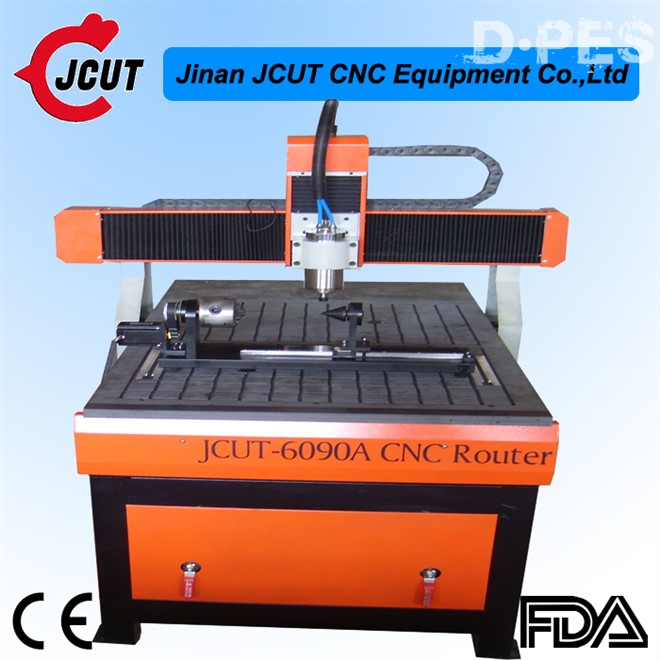

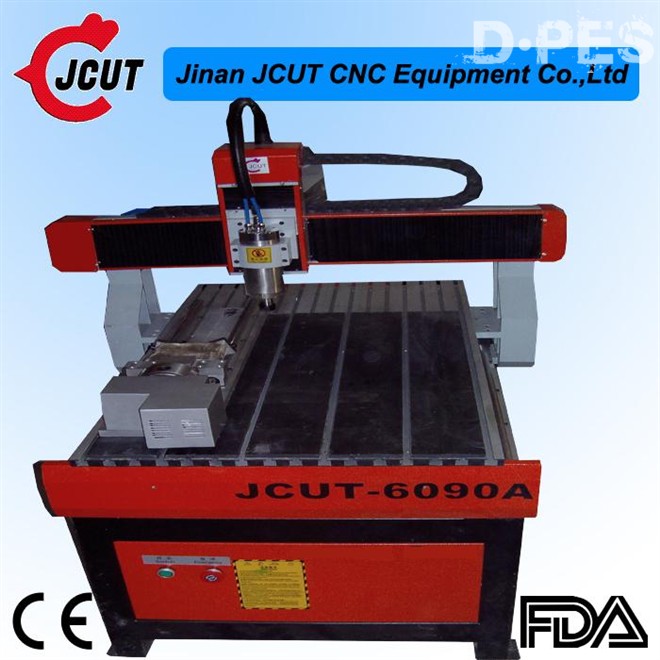

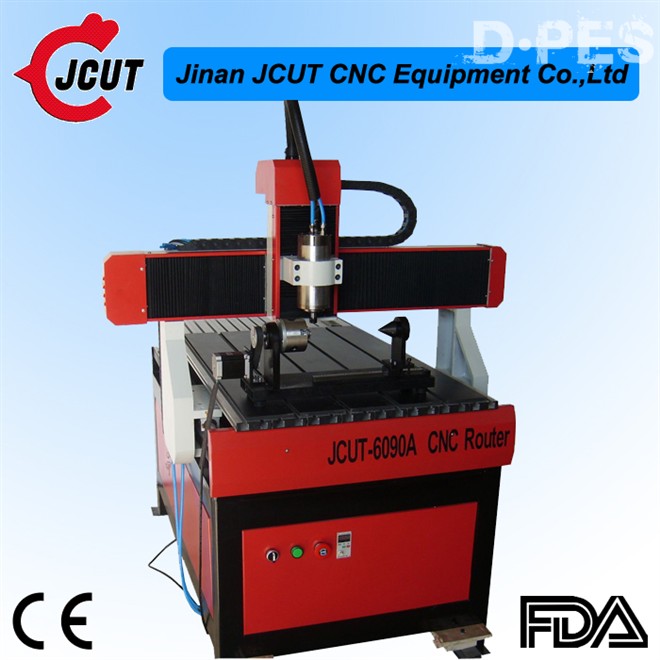

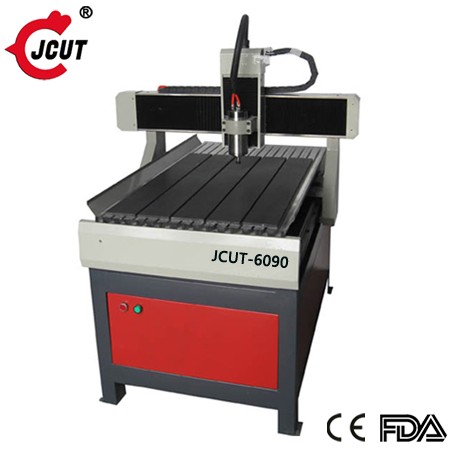

CNC Router machine/cnc router engraver/cnc engraving machine/cnc cutting engraving machine JCUT-6090A
Specifications:
This machine is widely used in advertising industry, such as sign making ,department nameplate ,chest badge ,architectural model, ABS plate , acrylic cutting, jade ,glass and marble engraving.
1,Solid gantry, well structure of lathe bed ,stable lathe table, fast speed and high accuracy .
2, High-speed water cooling spindle and high performance subdivision driver ensure to work stably for a long time.
3, Adopt advanced CNC system (NCstudio or DSP control system), This system have break point memory mode and special saving made of different points so that can make sure continuous working after electronic drop or other postpone situation. This function can guarantee the processing precision of long time operation.configured with practical and easily –learned software , can conveniently check the moving path of tool, and adjust the processing depth of Z axis and the speed of motor.
4,Option:Stianless steel water tank is suitable for the processing of hard materials, such as glass, marble and so on.
Parameters:
|
JCUT MODEL
|
JCUT-6090A CNC Router
|
|
Working Area (X*Y*Z)
|
600X900X150mm(23.6X35.4X5.9 inch)
|
|
Processing accuracy
|
0.01mm
|
|
Repositioning accuracy
|
0.05mm
|
|
Spindle
|
1.5KW variable speed , water-cooled
|
|
Spindle rotating speed
|
0-24000rpm/min
|
|
Max Moving Speed
|
6000mm/min
|
|
Working speed
|
0-5000mm/min
|
|
Driving mode
|
Ball screw
|
|
Voltage
|
AC220V/50Hz
|
|
Max. Power consumption
|
1.9KW
|
|
Feeding Height
|
150mm
|
|
Drive motor
|
Stepper
|
|
Command
|
G.code , mmg , plt , uoo,HPGL
|
|
Compatible Software
|
Type3, Artcut, ArtCAM, masterCAM software
|
|
Certificate
|
CE,FDA
|
|
Pack dimensions
|
1400mm X 1250mm X 1600mm wooden trunk
|
|
Net weight
|
220KG
|
Option: Rotary axis, vacuum table，dust collector
Different working size:
600X800MM/600X1500MM /900X1500MM/1200x1200mm/1200x1500mm/1200x1800mm/1200x2400mm or other sizes according to customers’
