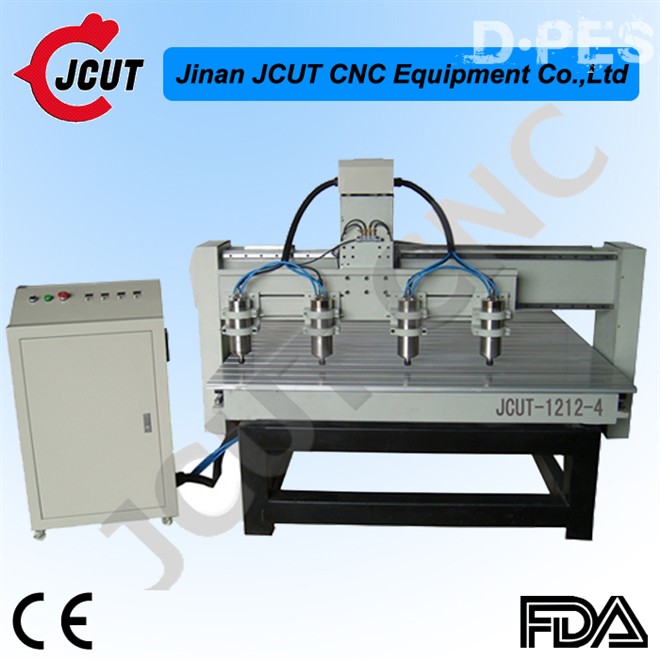

CNC router four heads/multi heads cnc router/woodworking cnc router/cnc woodworking machine JCUT-1212-4
Features: Four heads cnc router, four times efficiency.
Applications:
Can be used on advertisement engraving, advertisement cutting,
stone processing cutting, Cu and Al molding cutting, mold manufacturing cutting,
wood processing cutting, wood door manufacturing cutting, craft manufacturing
cutting, light box cutting, building mold cutting, indoor decoration cutting,
wave board processing cutting, light equipment mold processing cutting, sign and
mark manufacturing cutting, acryl board processing cutting, stamp cutting, and
PCB cutting
Parameters:
Machine body: Whole cast iron
Guideway: circular guideway
Working Area (X*Y*Z):1200X1200/4X150mm (47.2X47.2/4X5.9 inch)
Processing accuracy: 0.01mm
Repositioning accuracy: 0.05mm
Spindle: 1.5KWx4variable speed , water-cooled
Spindle rotating speed: 0-24000rpm/min
Max Moving Speed: 10000mm/min
Working speed:0-7000mm/min
Driving mode: Z-Ball screw, XY-Rack drive
Voltage: AC220V/50Hz
Max. Power consumption: 6.9KW
Feeding Height: 200mm
Drive motor: Stepper
Command: G.code , mmg , plt , uoo,HPGL
Compatible Software: Type3, Artcut, ArtCAM, masterCAM software
Certificate: CE, FDA
Pack dimensions: 1800mm X 1850mm X 1800mm wooden trunk
Net weight: 450KG
Option: Rotary axis, vacuum table,dust collector, or bigger
spindle .
Different working
size:
900X1500mm/1200x1200mm/1200x1500mm/1200x1800mm/1200x2400mm or other
sizes according to customers’
