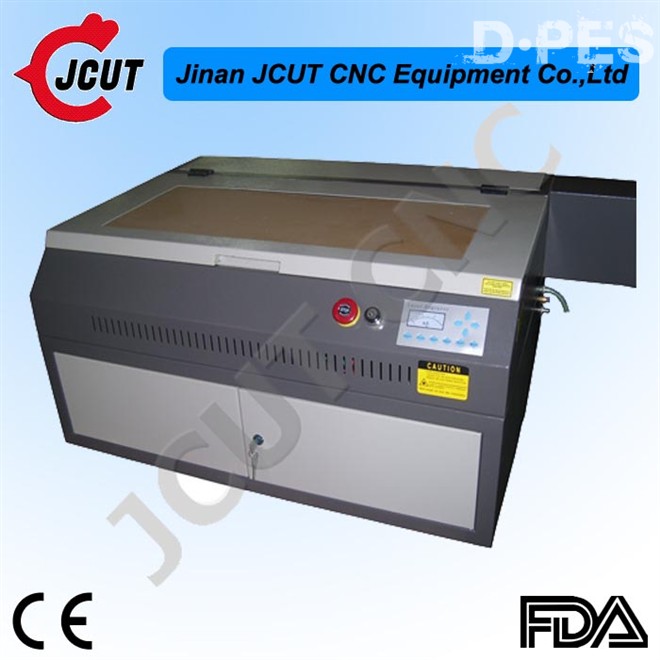

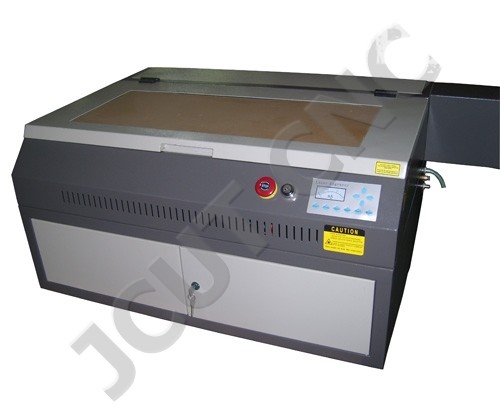

Laser engraver/laser engraver machine/laser engraving machine/co2 laser engraver/co2 laser engraving machine JCUT-3040
This mini machine is especialy designed for art & crafts engraving industry.
This machine adopts imported linear guide, with DSP system control software.
The machine has a stable performance and applicable for different industries.
It is the ideal choice for non-metal processing industry.
Supply with CE certificate, FDA
Specification:
1) Engraving area: 400 x 300mm
2) Whole machine size: 1,100 x 660 x 450mm
3) Laser power: 40W
4) Engraving speed: 0 - 54,000mm/min
5) Resetting positioning accuracy: ±0.01mm
6) Power supply: AC 110 - 220V ±10%, 50 - 60Hz
7) Gross power: <1,000W
8) Operating temperature: 0 - 45°C
9) Operating humidity: 8 - 95%
10) Minimum shaping character: English 1 x 1mm
11) Graphic format supported: BMP, HPGL, PLT, DST, DXP, and AI
12) Driving system: stepper
13) Cooling mode: water-cooling and protection system
14) Table: up and down platform
15)Auxiliary equipments :Exhaust-fans, air-exhaust pipe
16)Controlling software : DSP control system.
17)Compatible software: CorelDraw AutoCAD Photoshop
18)Laser- type: Sealed CO2 laser tube
19)Net Weight:80KG
Applicable materials: wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Applicable industries: advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
Optional Parts:
|
Rotary axis
|
For cylinder material engraving
|
|
Up and down platform
|
Adjust material feeding height(max,45mm)
|
|
Auto focus
|
To engrave uneven surface. It is added on the lifting platform
|
|
Red position
|
To realize simulation engraving, and find position quickly
|
