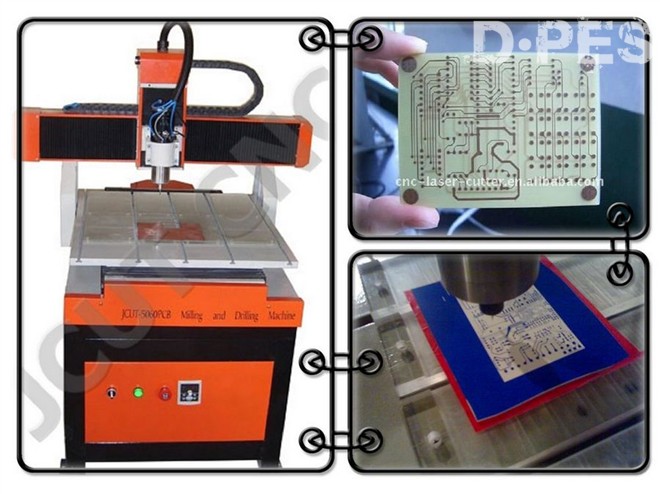

PCB router machine/pcb cnc router/pcb engraver machine/pcb engraving machine/pcb drilling milling machine JCUT-5060

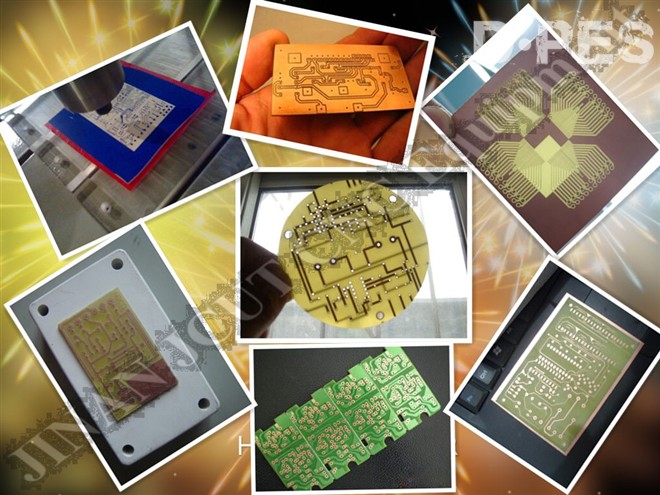

The most boring ting to do is to make the PCB. Though now most people give the boring affairs to the PCB factory, yet it is indeed too long to wait for about three days or a week. New inspiration for a design is usually given up because of the trouble. While a PCB making machine can finish making a piece of PCB only in a few minutes, which can let your inspiration instant come true.
Main features:
1. High efficiency: It merely needs a few minutes to make a piece of PCB.
2. Accuracy: The min error of numerical control drill hole less than 1mil (0.025mm).
3. Automatism and convenience: Simple software hardware installation, operate the manufacturing process by striking the function keys of operation system.
Main technical parameter:
Whole cast aluminum with cylindrical guide
Machined surface: single/double
Worktable board: 500*600mm
Max. speed: 8000mm/min
Working speed: 0-4000mm/min
Working accuracy: 6 - 8mil
Least line diameter and least line spacing: 6 - 8mil
Drilling depth: 0.02 ~ 3mm
Drilling diameter: 0.4 ~ 3.175mm
Drilling holes: 40-100/min
Repeat Accuracy: 0.025mm
The least error of Data control drill less than 1mil (0.015mm)
Operation system: WIN2000/XP /VISTA
Means of communication: PCI
Function Request: Protel PCB document can be directly put in. (gerber)
Spindle speed: 24000rpm
Spindle power: 1500W
Power supply: AC210-240V
Volume: 1200*1200*1600mm
Gross: 220Kg
