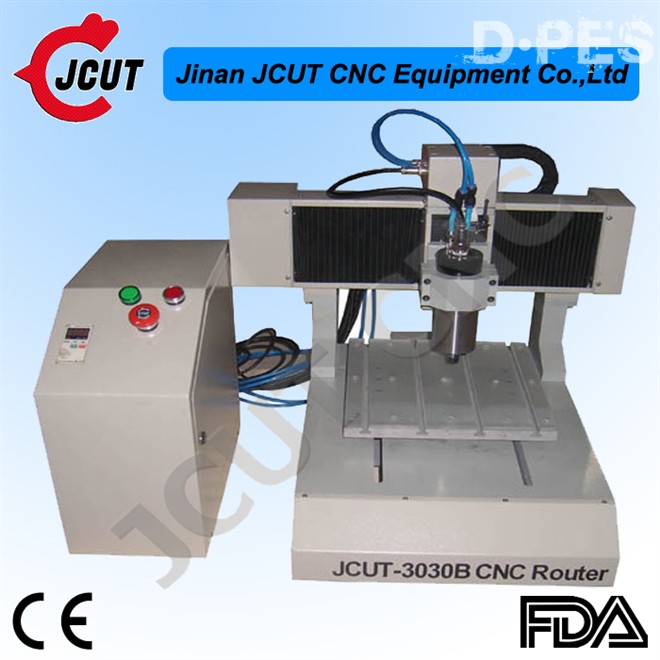

Mini CNC Router JCUT-3030B
Features: work table can move back and forth
Applications:
Can be used for advertisement engraving, advertisement cutting, stone processing, Cu and AL molding, mold manufacturing, wood processing, craft manufacturing, light box cutting, building mold cutting, indoor decoration cutting, light equipment mold processing, sign and mark manufacturing, acrylic board processing, as well as stamp cutting and PCB cutting
Specification:
1) Machine body: whole cast aluminum
2) Work dimensions: 300 x 300 x 45mm
3) Body dimensions: 600 x 600 x 600mm
4) Z-axis working area: 45mm
5) Max. Feeding height: 60mm or bigger
6) Cut thickness of material: ≤20mm
7) Max. Speed: 8000mm/min
8) Working speed: 0 - 6,000mm/min
9) Mechanical precision: 0.01mm
10) Control system: Ncstudio
11) Design Software: type 3 software, Artcut software, Artcam software
12) Max. Power consumption: 900W
13) Power source: AC 220/50Hz or 110V
14) Driver type: stepper motor
15) Spindle: 800W variable speed, water-cooled motor
16) Spindle speed: 0 - 24,000rpm
17) Blade diameter: 3.175mm,4mm,6mm
18) Command: G code, u00, mmg, plt
19) Relative humidity: 30% - 75%
20)Pack dimensions: 750 x 750 x 750mm
21)Net weight: 90kg
22)Gross weight:110kg
